Mills
EIMCO 3 ft x4 ft ball mill, steel liners
EIMCO 3 ft x4 ft ball mill, steel liners, on stand. Grate discharge with screen cover. Scoop and scoop box, chain drive with gear box.
Stirred ball mill /Attritor mill, 30 Hp
Szegvari Attritor vertical stirred ball mill. 30 Hp, 2-speed, Type C Size 20, No. 910805

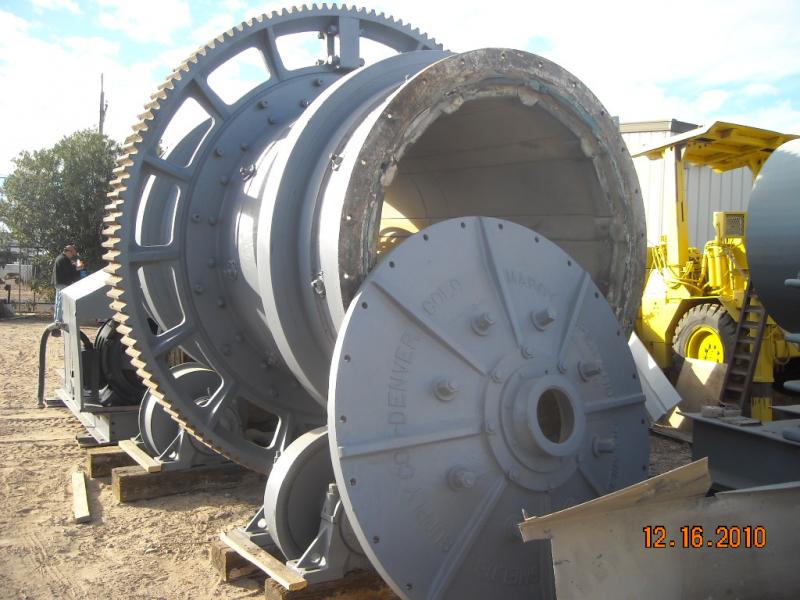

Denver ball mill, 3 ft diameter x 3 ft on stand
Denver Equipment Company 3 ft x 3 ft bal mill on stand. Spur gear drive. Scoop and scoop box. Steel liners.Marcy ball mill 6' x 7' bull gear, pinion
Marcy 6-ft diameter by 7-ft ball mill Herringbone bull gear and pinion fair condition. No mill shell
Ball mill spur, bull gears
New 13'-8.5" pitch diameter, 13 inch face, 1-3/8" D.P., 20-1.5" holes per half gear at 8.75-inch center to center. With three new pinion gears. Used 11'-2" pitch diameter, 15" face, 20 holes per half gear at 8.375" center to center. Falk 71554, 60400, 634006AB3.
Lab ball mills
Used lab ball mills 18-inch diameter by 18-inch inch diameter, batch, stand. Unusual figure 8 shell design.
Patterson batch mills
1-Patterson 5-ft by 5-ft batch mill, stone lined, with 15-Hp gear motor drive on stand.
1-Patterson 3-ft by 3-ft batch mill, stainless steel shell with 3 Hp gear motor drive on stand.
1-Patterson 4ft by 4 ft batch mill steel lined with 10 Hp gear motor, electric controls on standMarcy 6 ft by 11 ft ball mill
Marcy 6 ft diameter x 11 ft rubber lined ball mill , roller supported design, with 125 Hp motor, 440 volts. New rubber lifters (not installed), gear guards, spare support roller.
